Wire Wrapped Screen Pipe: High-Precision Filtration & Sand Control

The wire wrapped screen pipe is a high-performance industrial filtration device, manufactured by helically winding V-shaped stainless steel wires and welding them onto longitudinal support rods. Its unique V-shaped slot structure – narrow on the outside and wider on the inside – leverages fluid dynamics principles to resist clogging, effectively trapping particles while maintaining high flow efficiency. The wire wrapped screen pipe offers high strength, lightweight construction, large open area, and corrosion resistance. It is widely used in sand control for oil and gas wells, water treatment, chemical, and food processing industries, serving as a core component for efficient solid-liquid separation.

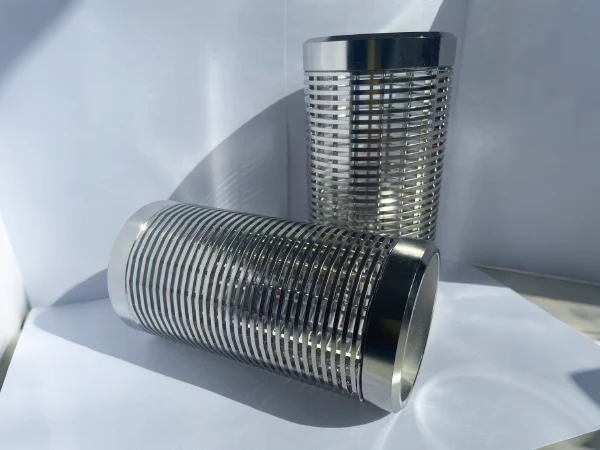

2 large-aperture wire wrapped screen pipes arranged together

Wire wrapped screen pipe

Structure

  • Support rod: Closely arranged along the axis of the base pipe, with diameter and quantity customized according to compression resistance requirements. Fully welded to the base pipe and profile wire to form a rigid monolithic structure.
  • Profile wire: Precisely wound helically onto the support rods, with each contact point fixed by resistance welding, creating continuous, uninterrupted V-shaped slots.

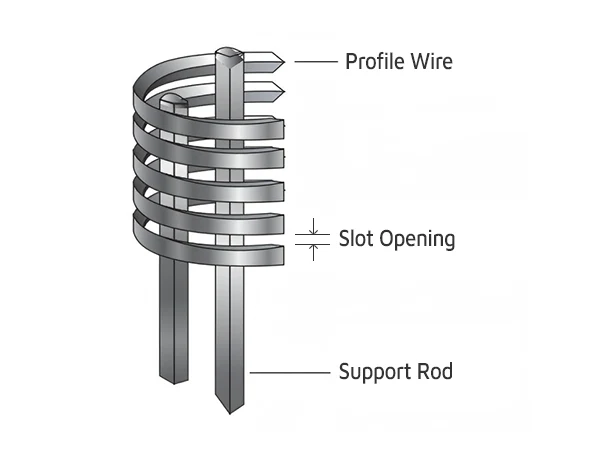

Cross-sectional structure and indication of wire wrapped screen pipe

Structural diagram

Specifications

  • Material for wire: stainless steel 316L or nickel alloy 825
  • Wire width: 0.090"
  • Slot depth: 0.100"
  • Slot opening: from 50 micron up to 2000 micron

Features

  • High-precision filtration. Continuous slots ensure accurate solid-liquid separation and prevent media loss.
  • Large open area. Compared to traditional slotted screen pipes, its wire-wrapped structure offers a significantly larger open area, greatly reducing pressure drop and enhancing output.
  • Anti-clogging and self-cleaning. The V-shaped slot design prevents reverse particle embedding, while fluid flushing automatically removes surface impurities, minimizing maintenance frequency.
  • Outstanding mechanical strength. It withstands high pressure, impact, and complex downhole environments.
  • Corrosion and high temperature resistance. Suitable for acidic, alkaline, and high-temperature environments (such as oil and gas wells).
  • Flexible installation. It supports rotational adjustment during installation, compatible with API/ANSI standard pipe diameters, and customizable end joints and threaded connection methods.

Applications

  • Oil and gas energy: Achieving sand-free production in vertical or horizontal wells.
  • Water treatment: Deep well pump filtration, seawater desalination, and wastewater reuse.
  • Chemical and food industries: Acid/alkali liquid filtration, and solid-liquid separation in the beer and sugar industries.
  • Environmental protection and municipal: Groundwater remediation and particle interception in rainwater reuse systems.

Gallery

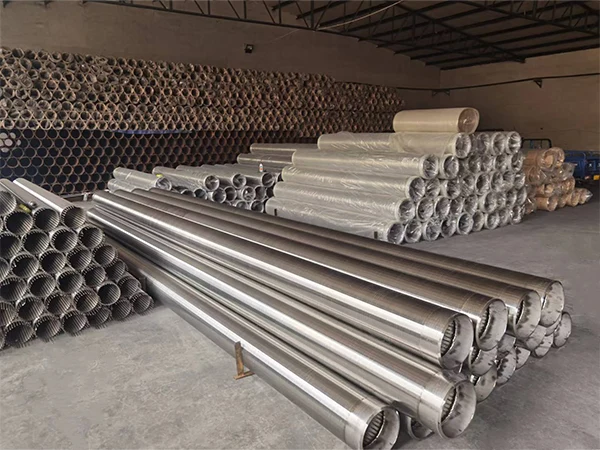

Wire wrapped screen pipes neatly arranged and secured with an iron frame

Secured with iron frame

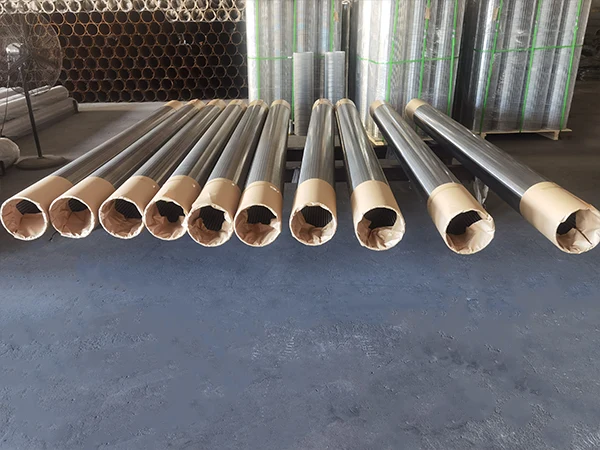

Wire wrapped screen pipe with connection end wrapped in kraft paper

Kraft paper wrapped connection

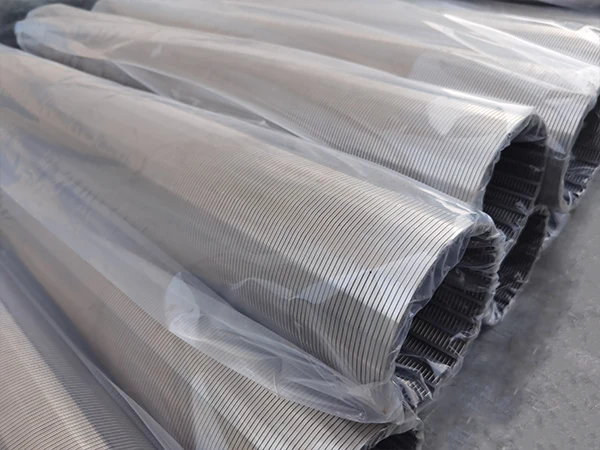

Wire wrapped screen pipes fully wrapped in transparent plastic

Plastic packaging

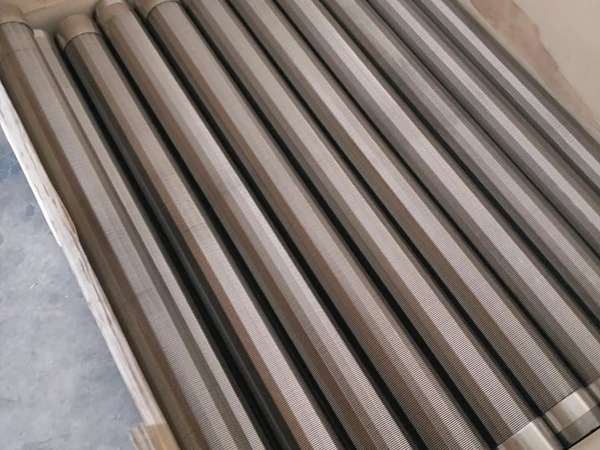

Wire wrapped screen pipes packaged in wooden crates

Wooden crate packaging
