Wedge Wire Screen Cylinder – Optimal Filtration for Extreme Environments

The wedge wire screen cylinder is a high-efficiency filtration element engineered specifically for heavy-duty applications. Its cylindrical design provides a higher open area, while the continuous slots greatly increase the flow capacity, offering performance that far surpasses traditional slotted screen pipes. This design improves filtration efficiency while effectively reducing energy consumption, making it ideally suited for demanding applications with stringent filtration requirements, including petroleum, chemical, water treatment, drilling operations, geothermal development, and hydrological exploration.

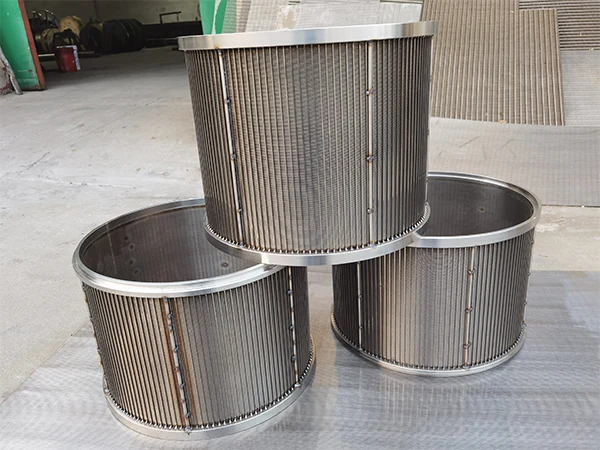

Three wedge wire screen cylinders with external support rods stacked upright

Wedge wire screen cylinder

Specifications

  • Materials
    • Stainless steel 304/316L/321/310S
    • Duplex steel 2205/2507
    • Hastelloy
    • Titanium alloy
  • Support Profiles
    • Triangular (V-shaped, wedge)
    • Square
    • Round rod
    • Flat bar
    • Water drop
  • Slot size: 0.02–10 mm
  • Cylinder diameter: 100–1,200 mm
  • Length: Up to 4 m

Features

  • Anti-clogging and high efficiency. The continuous wedge-shaped slot design prevents particle buildup, ensures stable and continuous filtration, and reduces the frequency of shutdowns for cleaning.
  • Flexible customization. It supports personalized customization of aperture and length to accommodate diverse equipment requirements.
  • Enhanced structure. It is available in both standard and reinforced versions to withstand conventional or extreme pressure conditions.
  • Versatile end connections. Multiple connection designs (such as flange, thread, etc.) enable seamless integration with automatic self-cleaning filters, rotary screens, and other equipment.
  • Equipment protection. Low-resistance design minimizes pump wear and reduces maintenance costs.

Applications

  • Petrochemical industry: Fine oil filtration, catalyst recovery, and separation of acidic media.
  • Water treatment: Seawater desalination pretreatment, industrial wastewater screening, and municipal sewage sludge dewatering.
  • Chemical industry: Solid-liquid filtration of strong acid or alkali solutions like electroplating solution purification.
  • Geology and energy: Geothermal well sand control, drilling mud filtration, and hydrogeological exploration sampling.
  • Environmental protection: Food processing residue dewatering, livestock manure treatment, and organic waste screening.
  • High-end manufacturing: Ion exchanger protective layers and high-purity liquid filtration in the pharmaceutical industry.

Gallery

Internal support rod type wedge wire screen cylinder

Internal support rod type

Support rods of the wedge wire screen cylinder installed parallel on the exterior

External support rod type

Large aperture wedge wire screen cylinder

Large aperture type

Wedge wire screen cylinder in wooden crate packaging

Wooden crate packaging
