Custom Wedge Wire Filter Elements Compatible with Diverse Equipment

Wedge wire filter elements, also known as wedge wire filter cartridges, are an advanced filtration device specifically engineered for the efficient separation and filtration of liquids, gases, and solid particles. They are manufactured from high-quality wedge wire, offering a filter rating up to 20 microns. They are widely applied in the chemical, food and beverage, mining, and environmental protection industries.

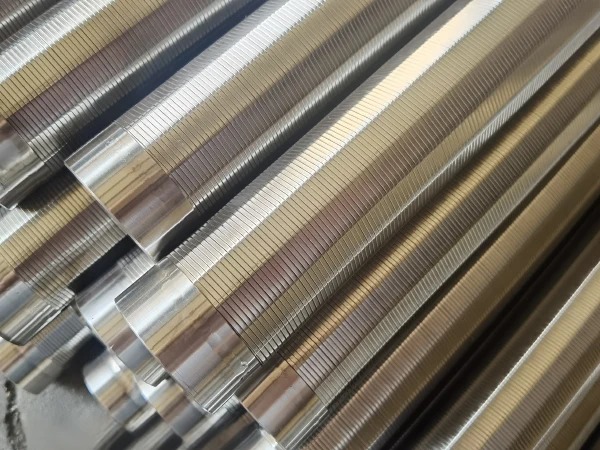

Multiple wedge wire filter elements with flat bottoms

Wedge wire filter elements

Category

  • Wedge wire candle filters. Elongated cylindrical design; liquid flows from outside to inside, with particulate impurities retained on the filter surface while clean fluid discharges from the interior. Suitable for high-precision filtration applications.
  • Wedge wire screen filter baskets. It features a top-open design with handles for easy installation; used for intercepting impurities in pipelines and suitable for high-flow conditions.
  • Internal scraping self-cleaning filter element. Equipped with a built-in scraper or backwash system, it automatically removes deposits from the filter element surface. Suitable for high-viscosity fluids (such as asphalt and syrup) and continuous production environments.
Candle-shaped wedge wire filter element

Wedge wire candle filters

Wedge wire filter element basket with flat handle

Flat handle wedge wire screen filter baskets

Wedge wire filter element basket with bent handle

Arcuate handle wedge wire screen filter baskets

Wedge wire filter element with self-cleaning standard round opening

Internal scraping self-cleaning filter element

Specifications

  • Materials
    • Stainless Steel 304/316L/321/310S
    • Duplex Steel 2205/2507
    • Hastelloy
    • Titanium alloy
  • Max. differential pressure: 300 psi
  • Max. temperature
    • Synthetic Seals: 500 °F
    • NPT: 1,500 °F
  • Length options: 10", 20", 30", 40", and custom sizes
  • Connection type: Threads
  • Bottom type: Flat or tapered
  • O.D.: 25.4–120 mm
  • I.D.: 18.6–111 mm
  • Support wire No.: 8, 12, 8/10, 8/12, 12/18, 18, 24
  • Filter direction: FOTI, FOTI/FITO
Table 1: Specifications of Wedge Wire Filter Elements
Type O.D. (mm) I.D. (mm) Support Wire No. Filter Direction
WWFE-25.4 25.4 18.6 12 FOTI
WWFE-33 33 24 8 FOTI
WWFE-37 37 28 8 FOTI
WWFE-40 40 31 8/10 FOTI/FITO
WWFE-45 45 36 8/12 FOTI/FITO
WWFE-48 48 38 12 FOTI/FITO
WWFE-60 60 51 12 FOTI/FITO
WWFE-70 70 61 12/18 FOTI/FITO
WWFE-85 85 76 18 FOTI/FITO
WWFE-110 110 101 24 FOTI/FITO
WWFE-120 120 111 24 FOTI/FITO

Features

  • High precision filtration. It has a filter rating up to 20 μm, enabling accurate retention of impurities and ensuring high-purity fluid output.
  • Durability and corrosion resistance. It can withstand high temperatures, high pressures, and corrosive environments.
  • Flexible design. It supports customized dimensions, port connections, and bottom shapes to meet diverse equipment requirements.
  • Environmental protection and cost-effectiveness. It is reusable through repeated cleaning, reducing maintenance costs and waste generation.

Applications

  • Petroleum and chemical: Catalytic reforming reactor internal and external baskets, centrifuge filter cartridges, and high-viscosity oil filtration (such as wax oil and asphalt).
  • Water treatment: Seawater desalination intake filtration, municipal wastewater solid-liquid separation, and groundwater well screens.
  • Food and beverage: Beer wort clarification, juice and pulp separation, whey filtration, enhancing product clarity and mouthfeel.
  • Pharmaceutical and biotechnology: Cell culture media filtration, crystallization separation, and tablet coating recovery.
  • Mining and metallurgy: Slurry dewatering, flotation foam filtration, and tailings treatment.
  • Environmental protection: Industrial wastewater heavy metal retention, sludge dewatering, supporting sustainable development.

Gallery

Wedge wire filter element with flange connection

Flange connection

Wedge wire filter element with ferrule fitting connection

Ferrule fitting connection

Wedge wire filter element with male thread connection

Male thread connection

Wedge wire filter element with female thread connection

Female threaded connection.
